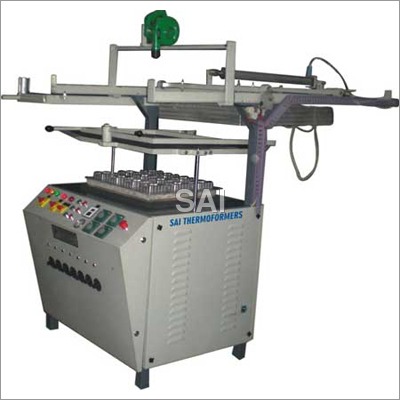

Blister Forming Machine
Technical Specifications
| Model |
S&B SIT 4661 |
| Forming Area |
18" x 24" |
| Maximum Speed |
2 Cycles Per Minute/For HIPS PVC |
| Roll Size(Width only) |
20" |
| Dimension For Machine |
L x W x H 72" x 36" x 60" |
| Approx Weight |
700 Kgs. |
| Maximum Draw |
100 mm |
| Sheet Thickness From |
0.01mm to 3mm |
| Material which can be used |
HIPS, PVC, PET, ABS |
| Electrical Power Reqd. |
7 KW (3 Phase & Single Phase) |
| Vacuum Pump |
300 LMV |
| Heating Element |
Air Heater |
| Heat Control |
Sunvic |
Applications Used for following Products
- Biscuit Tray
- Chocolate Tray
- Sweets Box
- Jams jelly Tray
- Dry Fruit Tray
- Ampule & Injection Tray
- Tooth Brush
- Toy Packaging
- Geometry & Color Box
Delivery: 60 days after confirmation of order
|
